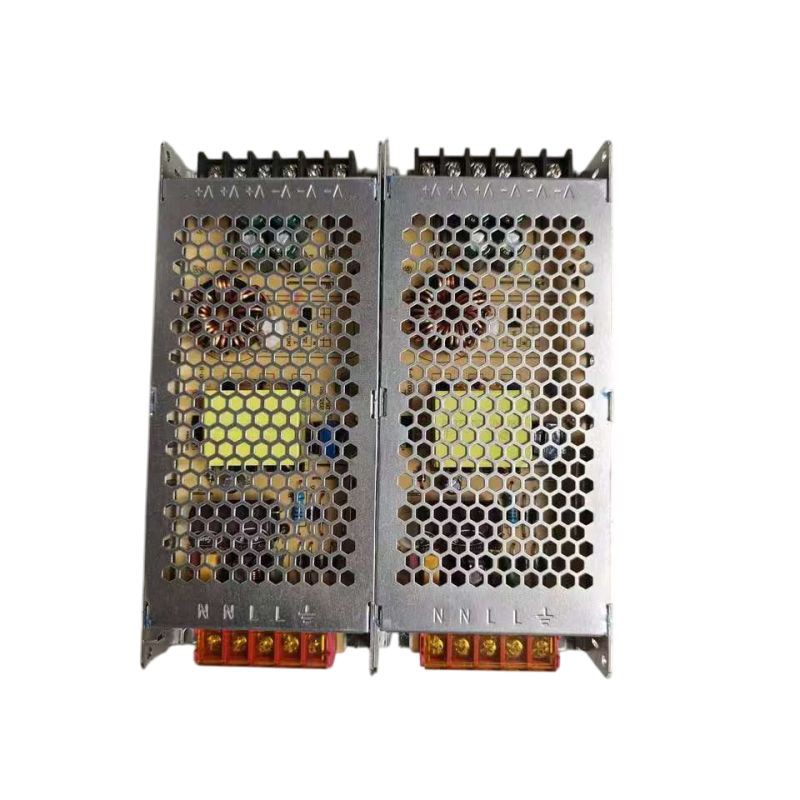

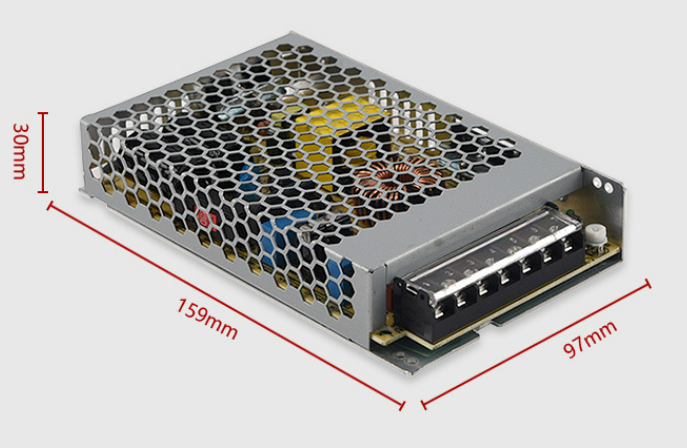

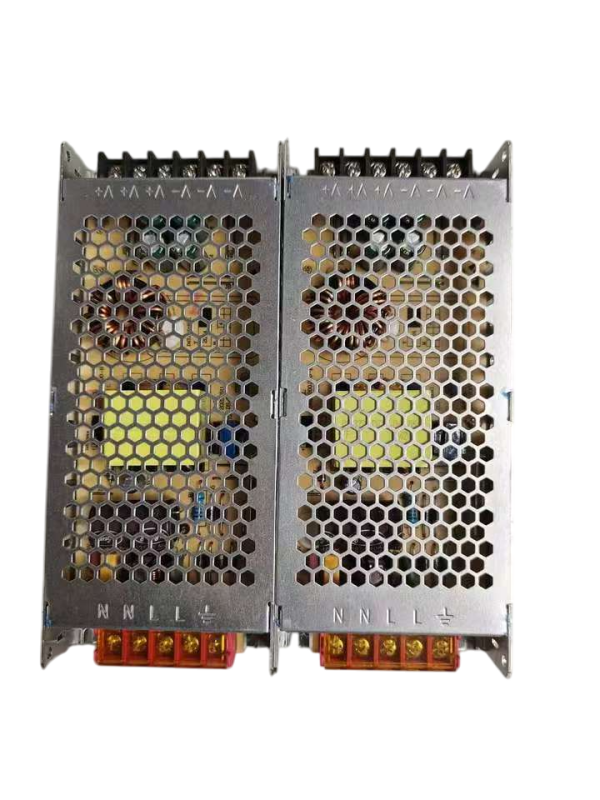

250w Ultra-thin Switching Power Supply

110/220V AC input     over-current and short-circuit protection function Self-cooling 100% full-load burn-in test         low price and high quality 1-year warranty          Weight/Packing--1kg,20pcs/20kg/1.0CUFT

Overload protection 105-150% shut-off current automatic recovery

Overvoltage protection 115-135% shuts-off voltage automatic recover

Start-up time 800ms, rise time 50ms, hold time 16ms

Pressure resistance, 1.5KVAC between input and shell, 0.5KVAC between output and shell, for one minute

Working temperature and humidity: -10~+60℃, 20%~90%RH

Safety standard: CE compliant
EMC standard: CE compliant
Connection method: 9-position 9..5mm terminal block

Shenzhen Bolze Power Technology Co., Ltd. is a high-tech company integrating R&D, production and sales.

Our core business and products:1. Products include AC/DC adapters, chargers, high-power switching power supplies, LED driver power supplies, waterproof power supplies, UPS backup power supplies, etc.;2. The main business is to provide one-stop solutions for circuit design optimization, appearance structure customization, and special function integration (such as waterproof, lightning protection, intelligent control, etc.) according to customer needs.
Our technical strength and advantages:1. The R&D team has many senior engineers with core technologies in power circuit design, EMC optimization, thermal management and other fields;2. The production strength is 20,000 units per day, equipped with fully automated patch lines, multiple production lines, aging test rooms, EMC laboratories and other advanced equipment, supporting small-scale trial production to large-scale delivery;
