Shenzhen Boerze Power Technology Co., Ltd. is one of the leading manufacturers and suppliers of 12v5a 60w dc power supply for led light in China. With abundant experience, we are committed to providin high quality customized products made in China with low price. Please feel free to buy cheap 12v5a 60w dc power supply for led light from our factory. Welcome to contact us for free sample.
Installation diagram
Wiring diagram for a 12V 5A 60W switching power supply

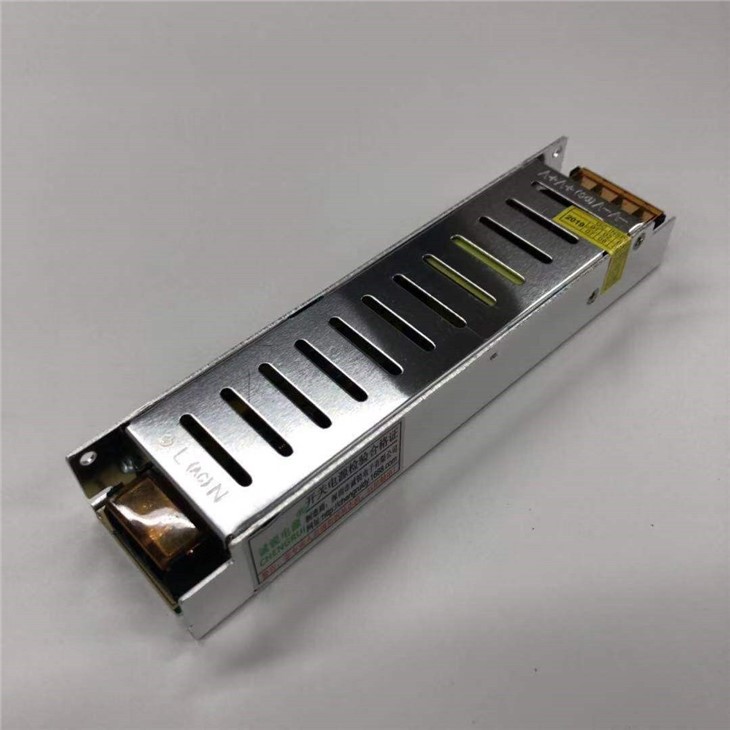

Our 60W switching power supply has a full output of 12V5A, and can also be customized with 24V 2.5A, 5V12A. It uses an aluminum shell to ensure super heat dissipation. It has a wide range of internationally accepted input voltage of 96-264V and is equipped with flame-retardant terminal blocks for enhanced safety. The power supply also uses anti-rust and anti-corrosion high-power capacitors and EMC filters to ensure small ripple and no clutter. This product is perfectly suitable for various applications such as bank self-service terminals, LED lights, industrial control equipment, monitoring equipment, and automation equipment.
Product Parameters
|
Product name |
12v5a 60w dc power supply for led light |
|
Brand |
BOERZE |
|
Type No. |
BRZ-T12V5A |
|
Input voltage |
AC85-265V |
|
Output voltage |
DC12V |
|
Output current |
5A |
|
Rated power |
60W |
|
Working frequency |
47-63Hz |
|
Size |
110*78*35mm |
|
Weight |
0.25Kg |
|
AC current |
1.3A/115VAC 0.75A/230VAC |
|
leakage current |
<2mA/240VAC |
|
withstand voltage |
I/P-O/P: 2KV, I/P-FG: 1.5KV, O/P-FG: 0.5KVAC |
|
Working temperature |
-20℃~60℃ |
|
Working humidity |
20~90%RH |
|
MTBF |
≥200Khrs |
Product Features
Features of the Perforated Aluminum-Cased Switching Power Supply
1. Enclosure and Heat Dissipation
The unit features a thickened aluminum alloy enclosure that is pressure-resistant, flame-retardant, and highly resistant to deformation.
The front panel utilizes a honeycomb-style mesh design, ensuring excellent airflow and efficient natural heat dissipation. It remains cool even during prolonged full-load operation, allowing for stable performance without the need for a cooling fan.
With its open-mesh structure, it is rated IP20 for indoor use-ideal for applications such as light boxes, surveillance systems, and industrial control equipment.
2. Electrical Performance
Input: Supports a wide voltage range of AC 90–265V, making it compatible with power grids worldwide.
Output: DC 12V, rated at 5A (60W). It offers high voltage regulation accuracy and low ripple, ensuring a stable, reliable output that meets its stated specifications.
Conversion efficiency is ≥85%, resulting in minimal heat generation, energy savings, and long-term durability.
3. Safety Protections
✅ Short-circuit protection
✅ Overload protection
✅ Overvoltage protection
✅ Overheat protection
Our power supplies come equipped with these four standard safety features. In the event of a fault, the unit automatically shuts down; once the issue is resolved, it resumes operation-ensuring that connected downstream equipment remains safe from damage.
4. Structure and Installation
The ultra-slim design supports wall-mounted installation via screws, making it easy to set up.
Input and output connections are handled via terminal blocks; the terminals are clearly marked for positive and negative polarity to prevent incorrect wiring.
Built with a pure copper transformer and high-capacity electrolytic capacitors, the unit has undergone full-load aging tests to ensure a longer service life.
Recommend Products
Application Scenario
I. LED Lighting Industry (Largest Application Sector)
1. Centralized power supply for LED strips, flexible LED strips, and RGB multi-color LED strips
2. Advertising light boxes, illuminated lettering, storefront signage, and identification signs
3. Display case lighting, shelf lighting, cabinet lighting, and vanity/mirror lighting
4. Landscape lighting, interior decorative lighting, and low-voltage string light
II. Security and Surveillance Industry
1. Centralized DC power supply for network and analog surveillance cameras (multi-camera power supply units)
2. Infrared night-vision PTZ cameras and waterproof cameras
3. Access control systems: electric strikes, electromagnetic locks, access controllers, and facial recognition access terminals
4. Alarm control panels, infrared detectors, and anti-theft alarm systems
III. Industrial Control and Automation
1. Power supply for small PLCs, relay modules, and sensors
2. Power supply for stepper motors and small DC motors
3. Internal power supply for instrumentation, test equipment, and control cabinets
4. Auxiliary equipment for production lines
IV. New Retail & Commercial Equipment
1. Power supply for vending machine control boards
2. Point-of-sale (POS) terminals, receipt printers, and barcode/QR code scanners
3. Low-voltage power supply for self-service terminals, digital signage (advertising displays), and touch-screen monitors
4. Power supply for electronic shelf labels (ESLs)
FAQ
Q1: What are the output voltage and current of this power supply?
A: The standard model is DC 12V 5A (60W). A full range of other specifications-such as 12V 3A, 10A, and 20A-is also available. It provides a stable, regulated DC output with low ripple, making it suitable for the vast majority of 12V low-voltage devices.
Q2: What is the input voltage range? Is it compatible with global voltage standards?
A: It features a universal wide-input voltage range (AC 90V–265V), supporting standard mains electricity worldwide. It can be used directly in regions including China, Europe, Southeast Asia, and Africa without the need for voltage adjustment.
Q3: Is this a constant-voltage or constant-current power supply?
A: It is a constant-voltage power supply, designed for constant-voltage loads such as LED strips, surveillance systems, industrial control equipment, and lighting fixtures. It is not suitable for directly charging lithium batteries.
Q4: What are the differences between this perforated aluminum-cased power supply and a standard enclosed power supply?
A: 1. The honeycomb-perforated design on the front allows for high airflow and natural air cooling, resulting in lower temperature increases even during long-term full-load operation.
2. The all-aluminum alloy housing is robust, pressure-resistant, corrosion-resistant, and provides protection against electromagnetic interference.
3. The fanless design ensures zero noise, requires no maintenance, and offers a longer service life.
Q5: Is an additional cooling fan required?
A: No. The perforated, convection-based cooling structure is sufficient to support stable, long-term operation at full load; no external cooling equipment is needed for standard indoor use.
Q6: Can it be used outdoors? Is it waterproof?
A: This is an IP20-rated indoor model; it is not waterproof, rainproof, or dustproof. It is intended exclusively for indoor use-such as inside cabinets, light boxes, or equipment enclosures-and must not be installed outdoors or exposed to rain.
Q7: Can multiple power supplies be connected in series or parallel?
A: Connecting units in series is not recommended, as it can lead to uneven voltage distribution and damage the power supplies.
Units of the same specification can be connected in parallel to increase capacity (provided that the power supply models and batch numbers are identical).
Q8: What protection features does the power supply have?
A: It includes a comprehensive set of four industrial-grade protections:
Short-circuit protection, overload protection, overvoltage protection, and overheating protection.
The unit automatically cuts off power in the event of an anomaly and recovers automatically once the fault is resolved, ensuring that downstream equipment is not damaged.
Q9: Will it burn out if left on 24 hours a day?
A: It is designed for 7×24-hour continuous operation. The unit has undergone full-load aging tests, ensuring stability and durability-making it ideal for long-term, continuous-power applications such as surveillance systems, lighting installations, and commercial equipment.
Q10: Will there be flickering, voltage drops, or instability during operation?
A: Equipped with high-quality capacitors and voltage-regulating chips, it provides precise voltage output with low ripple. There is no flickering or voltage drop, making it suitable for voltage-sensitive devices like LED strips and cameras.
Q11: How should it be wired?
A:
- L: Live wire input
- N: Neutral wire input
- V+: DC positive output
- V-: DC negative output
The positive and negative terminals are clearly marked, making wiring simple and minimizing the risk of incorrect connection.
Q12: Can it be wall-mounted?
A: Yes. The unit features pre-drilled mounting holes and an ultra-slim design, making it easy to install in light boxes, cabinets, or on walls.
Q13: Is the product certified? Can it be exported?
A: Standard certifications such as CE and RoHS are available. The product is suitable for export to Europe, the Americas, the Middle East, and Southeast Asia; additional certifications can be obtained based on specific customer requirements.
Q14: What is the warranty period?
A: The product comes with a standard 1-year factory warranty. In the event of a quality issue not caused by human error, the unit can be replaced.
Q15: Is the power output genuine (full-rated), or is it overstated?
A: Guaranteed full power output-no inflated ratings. Each unit undergoes a full-load burn-in test to ensure accurate specifications. We welcome independent testing, product verification, and random quality inspections.
Q16: What should I do if the unit doesn't light up or the connected equipment fails to operate?
1. Check if the 220V AC input is powered on.
2. Verify that the positive and negative terminals are connected correctly.
3. Check the downstream equipment for short circuits or overloads.
The power supply will automatically resume normal operation once the fault is resolved.
Q17: Is it normal for the unit to get slightly warm?
A: Yes, this is normal. It is a physical phenomenon for a power supply to generate a small amount of heat during operation. The mesh-style ventilation design allows for rapid heat dissipation, preventing any abnormal, excessive temperatures.
