Shenzhen Boerze Power Technology Co., Ltd. is one of the leading manufacturers and suppliers of 12v10a switching power supply cctv camera in China. With abundant experience, we are committed to providin high quality customized products made in China with low price. Please feel free to buy cheap 12v10a switching power supply cctv camera from our factory. Welcome to contact us for free sample.
Special Reminder
When choosing a power supply, the rated output power of the converter must be higher than the actual power required by your electrical appliance. We recommend reserving a power margin of 20%–30% to avoid long-term full-load operation, which will shorten the service life of the power supply. This model is rated 12V 10A (120W), and the continuous load power of your device should not exceed 90–96W.
Do NOT reverse the positive and negative poles during connection. Reverse connection will immediately damage the power supply and your load equipment. Correctly distinguish DC output positive (+) and negative (-) terminals. The power supply needs reliable grounding to prevent electric shock risk, especially for metal shell models.
This power supply supports AC input 110V / 220V (please confirm the specification before purchase). Do not connect it to an AC voltage outside the supported range. Wrong input voltage will burn the internal circuit.
This iron shell power supply relies on ventilation for heat dissipation. Please install it in a well-ventilated space. Do not seal it inside a closed box, cover the ventilation holes, or stack other objects on the shell. Keep it away from heat sources, inflammable materials and water. It is only for indoor dry use; not waterproof.
This power supply is designed for DC resistive or ordinary inductive loads such as LED lights, monitoring equipment, and fans. For high starting current equipment (such as motors, pumps), please reserve extra power margin, because the instantaneous starting current may be 2–3 times the rated current.
The suitable working temperature range is -10℃ ~ +50℃. Do not use it in humid, dusty, corrosive, flammable or explosive environments. Avoid rain splash, water immersion.
The power supply comes with over-current protection, over-voltage protection, over-temperature protection and short-circuit protection. When protection is triggered, the power supply will stop output automatically. Please cut off the power supply, check the load and wiring fault, and restart after troubleshooting. Frequent protection triggers mean the load exceeds the rated range.
It cannot be used for battery charging without a dedicated charging management board. Direct charging of lithium batteries will cause overcharge, overheat and fire hazard.
Do not open the metal shell by yourself. There is high voltage inside even after power off. All wiring work must be carried out after cutting off the AC input power.
Please test the power supply before permanent installation. Damage caused by reverse connection, overloading, wrong input voltage, water ingress and man-made disassembly is not covered by warranty.
Product Parameters
|
Product name |
12v10a switching power supply CCTV camera |
|
Type No. |
BRZ-T12V10A |
|
Input voltage |
110-240V |
|
Output voltage |
DC12V |
|
Output current |
10A |
|
Rated power |
120W |
|
Working frequency |
50-60Hz |
|
Size |
160*98*38mm |
|
Weight |
355g |
|
AC current |
1.3A/115VAC 0.75A/230VAC |
|
leakage current |
<2mA/240VAC |
|
withstand voltage |
I/P-O/P: 2KV, I/P-FG: 1.5KV, O/P-FG: 0.5KVAC |
|
Working temperature |
-20℃~60℃ |
|
Working humidity |
20~90% RH |
|
MTBF |
≥200Khrs |
|
Applications |
Industrial lighting, industrial control equipment, LED lights, building LED light strips, LED advertising light boxes, self-service terminals, surveillance cameras, building intercom, automation equipment, etc. |
Product Advantages
1. Adequate power, strong anti-interference performance, and minimal DC ripple.
2. The enclosure is designed to be both moisture and dust-resistant, with a sleek and easy-to-install appearance.
3. A wide input voltage range of 100-240V, in compliance with global usage standards.
4. Excellent insulation performance, with all high-frequency transformers being vacuum-dipped for optimum reliability.
5. Our product undergoes a full load high temperature aging process for 4-8 hours, ensuring a 100% product aging test and a low defective rate.
6. It boasts complete protection functions against overcurrent, overvoltage, short circuit, overtemperature, and overload, offering peace of mind for our valued customers.
Application Scenario
1. LED Lighting Industry: LED strips, modules, and illuminated advertising light boxes
2. Security & Surveillance Industry: Cameras, video recorders, and access control systems
3. Telecommunications/Low-Voltage Systems: Network switches, routers, and optical modems (ONUs)
4. Industrial Automation: Sensors, control modules, and small-scale PLCs
5. Advertising & Signage Industry: Illuminated lettering, advertising displays, and electronic signs
Precautions
1. Ensure proper connection of input and output wires to optimize power supply.
2. To ensure safety, make sure to ground the power ground wire (FG).
3. Use the power supply in an appropriate environment to maximize its lifespan and prevent damage to equipment. Remember to work smarter, not harder!
4. For optimal heat dissipation, it is highly recommended to install the power supply in a location with excellent air circulation.
5. To ensure peak performance and avoid any potential damage to equipment or power supply, it is essential to properly match the power requirements of both. This approach will prevent any negative impact and ensure a successful operation without any losses.
Product Recommend
Be used in a wide range of industries.
charger
UPS

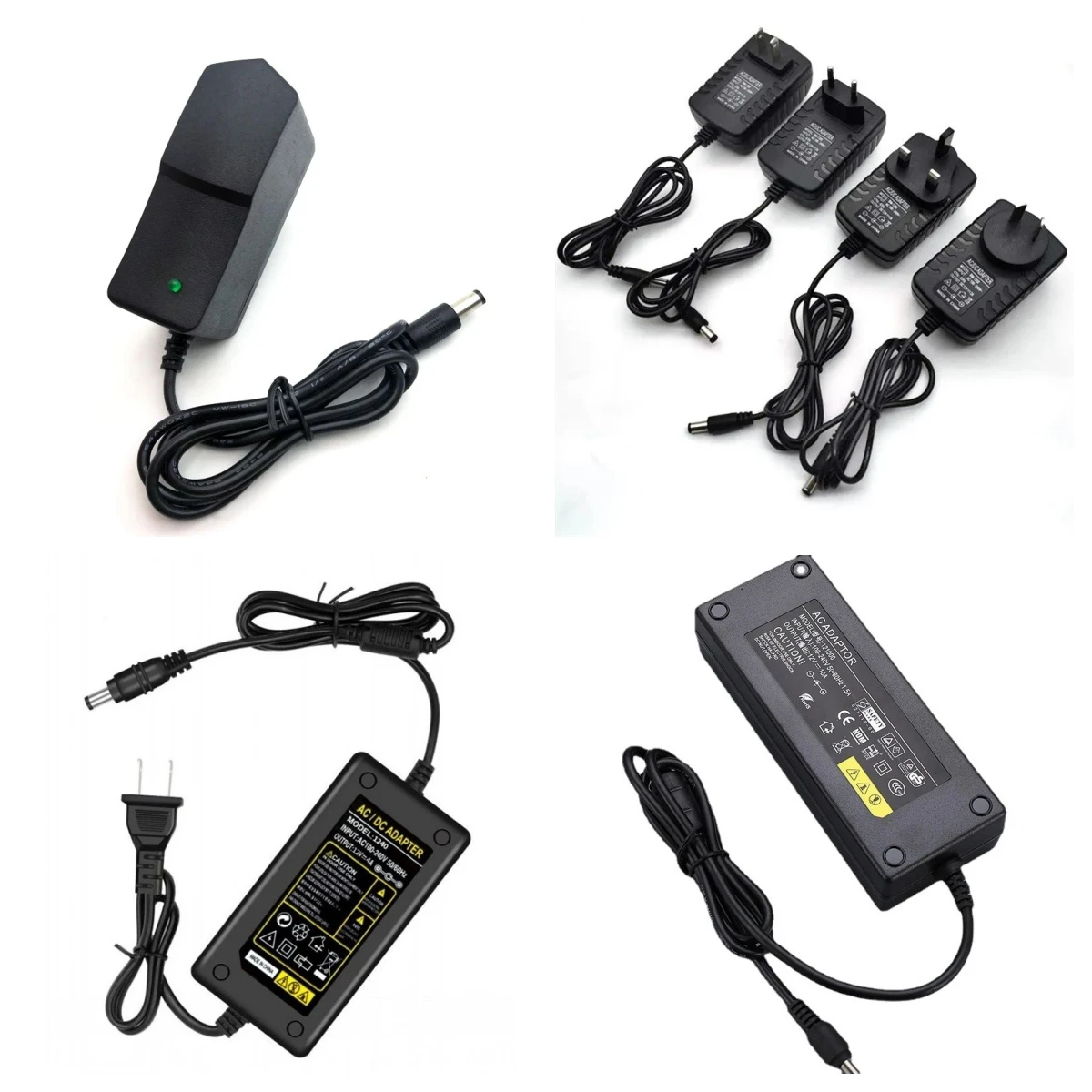

adapter
waterproof switching power supply
Adjustable Switching Power Supply
DIN-rail power supply
FAQ
1. How should you package my goods?
Each power adapter should be placed in a small white box, with 60 power supplies packed in a large carton.
2. Will I receive a discount if I place a large order?
Yes, we offer different discounts based on the quantity of your order.
3. Are you able to custom sizes?
Yes, we are happy to work with your any requirement.
4. Can you include our company logo on the nameplate and package?
Absolutely, we are happy to help personalize your order with your company logo.
5. What is your minimum order quantity (MOQ)? Can I mix different styles for my initial order?
Certainly! Please let us know which products you need first. For example, our MOQ is 100pcs. However, we can always provide stock samples for you to check product quality beforehand.
6. Do you offer design services?
Absolutely! We have a professional design team that can create products according to your specific requirements. Furthermore, we are also capable of developing new products based on your samples or drawings. We are here to help you bring your ideas to life!
7. Can I request to change the form of packaging and transportation?
Yes, We can change the form of the packaging and transportation according to your request, but you have to bear their own costs incurred during this period and the spreads.
8. Can I request to advance the shipment?
It should be depends on whether there is sufficient inventory in our warehouse.
9. Are there any special requirements for OEM purchases?
Yes, we require proof of trademark registration in order to print or emboss your trademark onto the product or packaging.
