Description
Technical Parameters
Product Features
1. High-power power supply, used for industrial equipment motors, automation equipment, stable performance, 3-year warranty;
2. The power supply comes with a voltage switch, and the input AC110V-220V can be switched at will to meet the needs of different countries and regions;
3. All models can be customized, and the output voltage can be adjusted to 0-12V, 0-24V, 0-36V, 0-48V, 0-70V, 0-110V, 0-220V, 0-400V;
4. The current or voltage can be adjusted manually, and 0-5V or 0-10V signal adjustment is supported. Power supplies with a power of more than 1000W come with adjustable variable PLC current adjustment points;

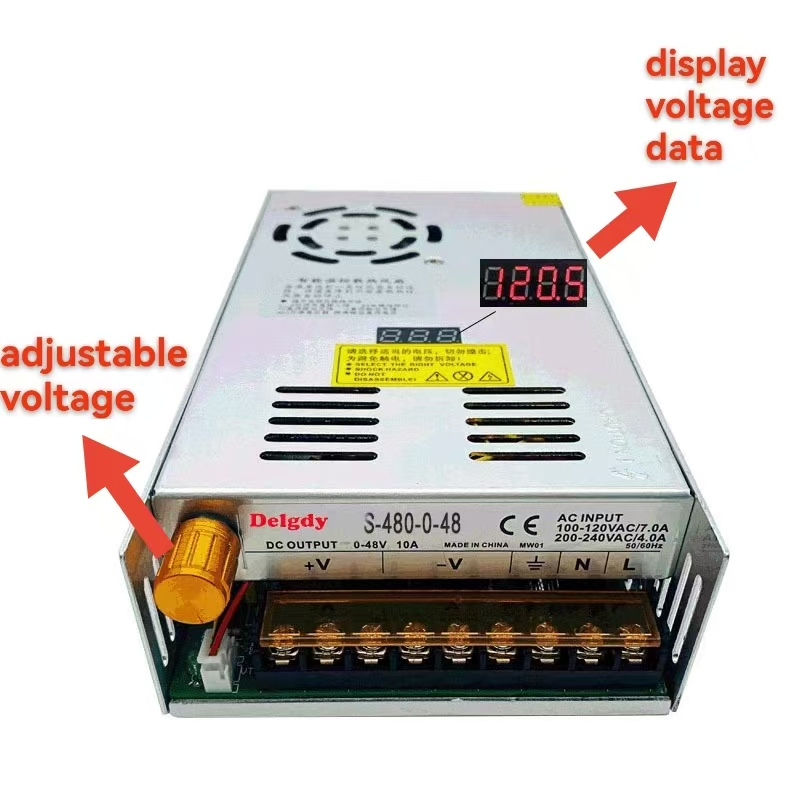

5. The power supply housing comes with a digital display screen, which displays voltage and current data in real time, making work more convenient;
3. All models can be customized, and the output voltage can be adjusted to 0-12V, 0-24V, 0-36V, 0-48V, 0-70V, 0-110V, 0-220V, 0-400V;
4. The current or voltage can be adjusted manually, and 0-5V or 0-10V signal adjustment is supported. The power supply with a power greater than 1000W comes with an adjustable variable PLC current adjustment point;
5. The power supply shell has a built-in digital display screen, which displays voltage and current data in real time, making work more convenient;
6. The power supply is equipped with a fan to accelerate cooling, so that the internal temperature of the power supply is always low during high-intensity work, and it can provide stable and long-term power supply for the equipment;
7. The power supply has short-circuit protection, over-current protection, and over-voltage protection. If there is an occasional fault during work, it will automatically protect the equipment from damage;
8. The shell is made of high-density space aluminum, which has the characteristics of dustproof, moisture-proof, fireproof, heat dissipation, etc., with excellent quality and low price;
9. The power supply is small in size, easy to install, and passed CE ROHS certification, strict control in the production process, 100% load aging test, you deserve it!
Product parameters
|
Model |
S-1000-12 |
S-1000-24 |
S-1000-36 |
S-1000-48 |
S-1000-110 |
|
DC output voltage |
12V |
24V |
36V |
48V |
110V |
|
Output Current |
85A |
42A |
28A |
21A |
9A |
|
Ripple and Noise |
200mVp-p |
200mVp-p |
200mVp-p |
200mVp-p |
200mVp-p |
|
Load stability |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
|
DC output power |
1000W |
1000W |
1000W |
1000W |
1000W |
|
Work efficiency |
90% |
90% |
90% |
90% |
90% |
|
DC voltage adjustable |
0-12V |
0-24V |
0-36V |
0-48V |
0-110V |
|
Over voltage protection |
12.5V |
24.5V |
36.5V |
48.5V |
111V |
|
Input voltage |
85-285VAC/50-60Hz |
||||
|
Inrush current |
50A |
||||
|
leakage current |
<3.5mA |
||||
|
Overload protection |
105%-150%, cut off output, automatically recover |
||||
|
over temperature protection |
>70℃, cut off output |
||||
|
Temperature coefficient |
±0.03% ℃(0-50℃) |
||||
|
Start/Rise/Hold Time |
1.5s,20ms,50ms |
||||
|
Shock resistance |
10-500Hz.2C 10min/One cycle Duration: 60 minutes |
||||
|
pressure resistance |
1.5KVAC input and housing |
||||
|
isolation resistance |
Input and housing 500VDC/100MΩ |
||||
|
Working temperature humidity |
-30℃-65℃ 20%-90%RH |
||||
|
Dimensions |
240*124*65mm |
||||
|
weight |
2.35kg |
||||
|
Safety Standards |
Meets UL1950 requirements |
||||
|
EMC Standards |
GISPR22(EN55022),IEC1000-4.2.3.4.5.6.8.11 IEC1000-3-2 |
||||
Products Description
Products are used in industrial equipment, 3D printing equipment, industrial automation, low-voltage motor equipment, various equipment electro mechanical, medical equipment, high-quality lighting projects...
Working principle of switching power supply with adjustable voltage and current?
How does the adjustable switching power supply work?
The adjustable current and voltage switching power supply is a widely used power supply in the field of electronic technology. Its working principle is to control the output current and voltage by adjusting the input voltage. It is mainly composed of a transformer, a rectifier bridge, a filter capacitor, a voltage stabilizing circuit, etc.
After the input voltage is stepped down by the transformer, the required power supply voltage can be obtained. Then, the rectifier bridge converts the AC power into DC power and filters it through the filter capacitor to ensure the stability of the output current and voltage. The voltage stabilizing circuit adjusts the output current and voltage by feedback control of the voltage.
What are the advantages of an adjustable switching power supply?
The adjustable current and voltage switching power supply has many advantages. First, it can adjust the output current and voltage according to actual needs to meet different application requirements. Secondly, its voltage stabilizing circuit can effectively protect the load circuit and the switching power supply itself to prevent power overload or circuit failure. In addition, it also has the advantages of high efficiency and small voltage fluctuation.
The adjustable current and voltage switching power supply is widely used in various electronic devices, such as computers, communication equipment, industrial automation equipment, etc. In the rapidly developing modern society, this power supply has become an indispensable power supply equipment. By continuously strengthening the research and innovation of power supply technology, I believe that adjustable current and voltage switching power supplies will play a more important role in the future and bring more convenience and innovation to people's lives and production.
